Image Manager - Sending Photos and Images with Mosio

Image Manager

PLEASE NOTE: Sending images through MMS is only available in the Basic and Plus Plans and costs 5 message/segment credits per message.

Videos: The video quality via MMS is bad because of mobile network file size limitations. We recommend sending links to videos instead.

The image manager stores all the images to be used throughout the study. To upload, view or make changes to the images, select Image Manager from your account dropdown menu in the top nav.

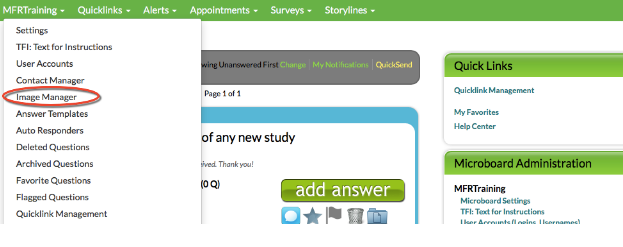

Fig 1: Image Manager link

The image manager allows you to remove or replace the existing images from the list.

To upload a new image, select choose files and upload the image or drag and drop the image into the space provided.

Name the image accordingly, an image ID will be automatically generated by Mosio and the image will appear in the image list.

To delete an image from the list simply click remove.

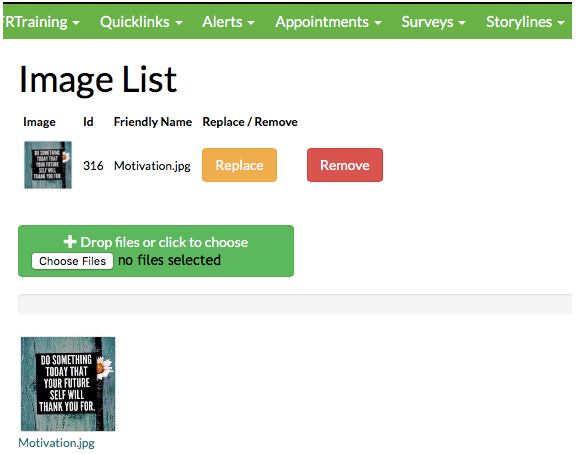

Fig 2: Image Manager; image list

Schedule Images in a Storyline

Images can be scheduled in a storyline by selecting Days in Storyline from the storyline overview page.

To send an image, select Alert and enter the day and time the message should go out.

Enter any text you want to send with the image and select the desired image from the menu list below the text box, add image then Add Day to schedule the image in the storyline.

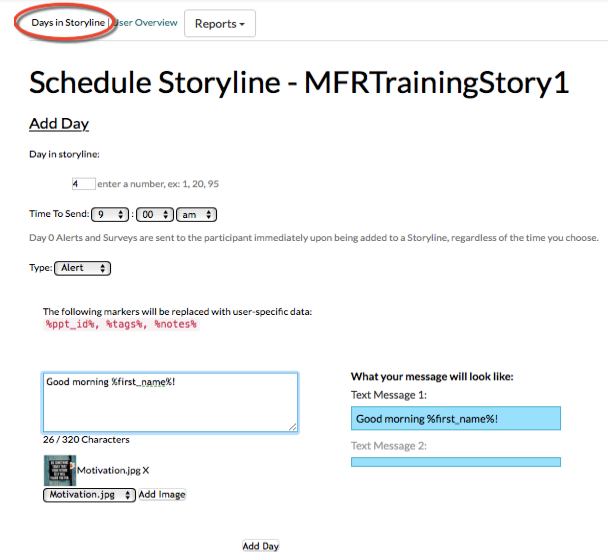

Fig 3: Sending an image; Days in Storyline

The message will be scheduled in the storyline showing the text and image ID associated with the selected image.

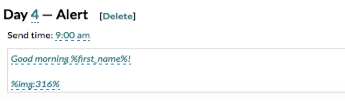

Fig 4: Scheduled Image; Days in storyline
